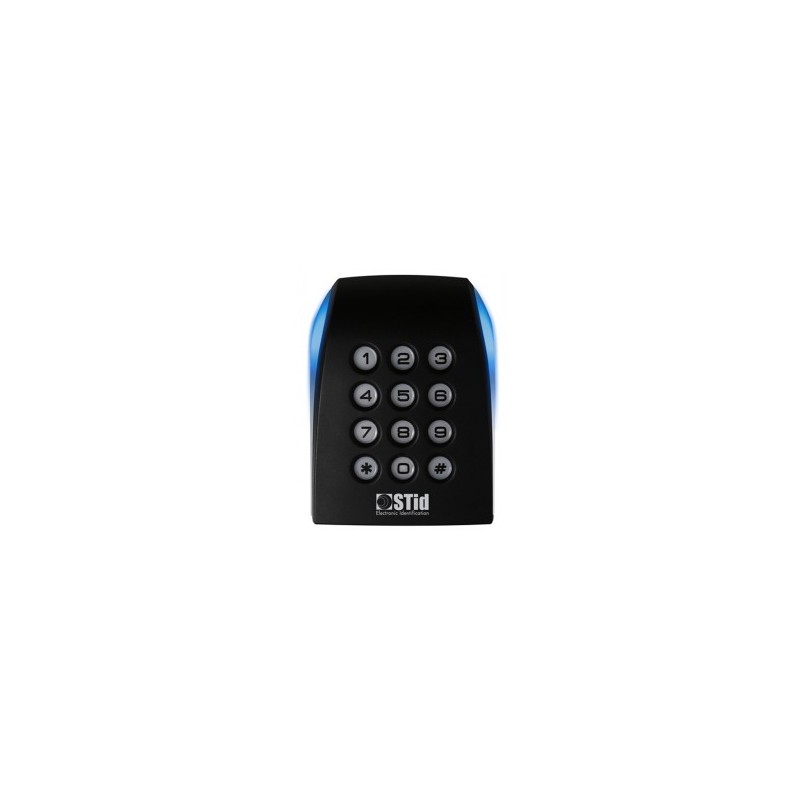

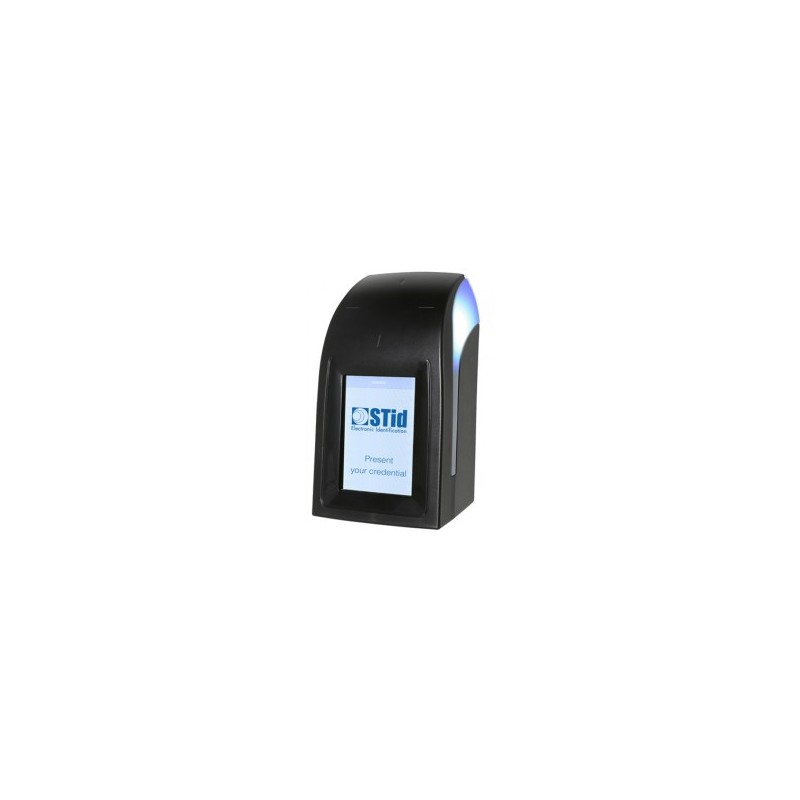

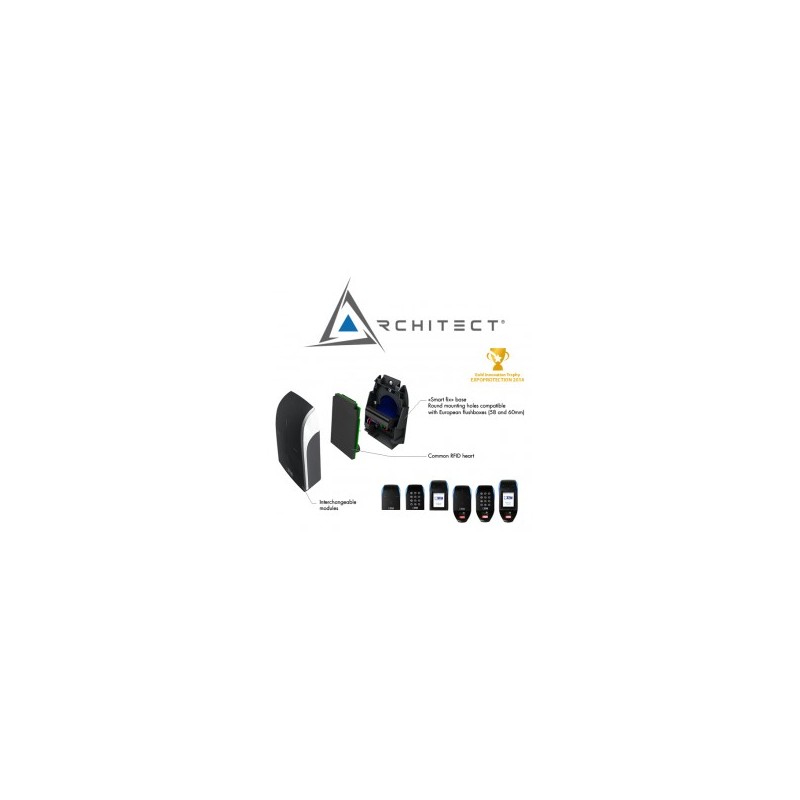

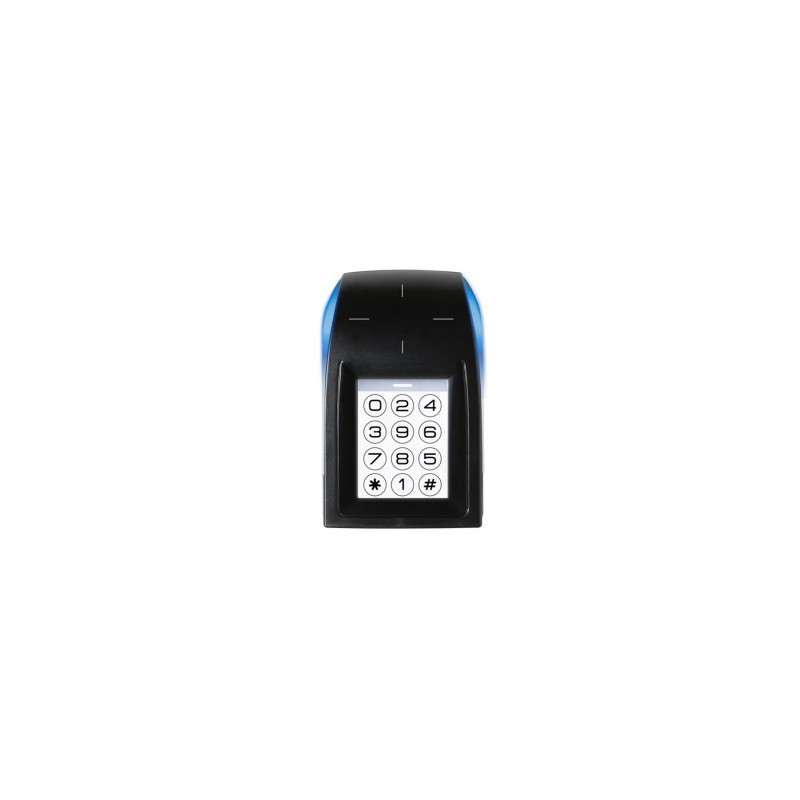

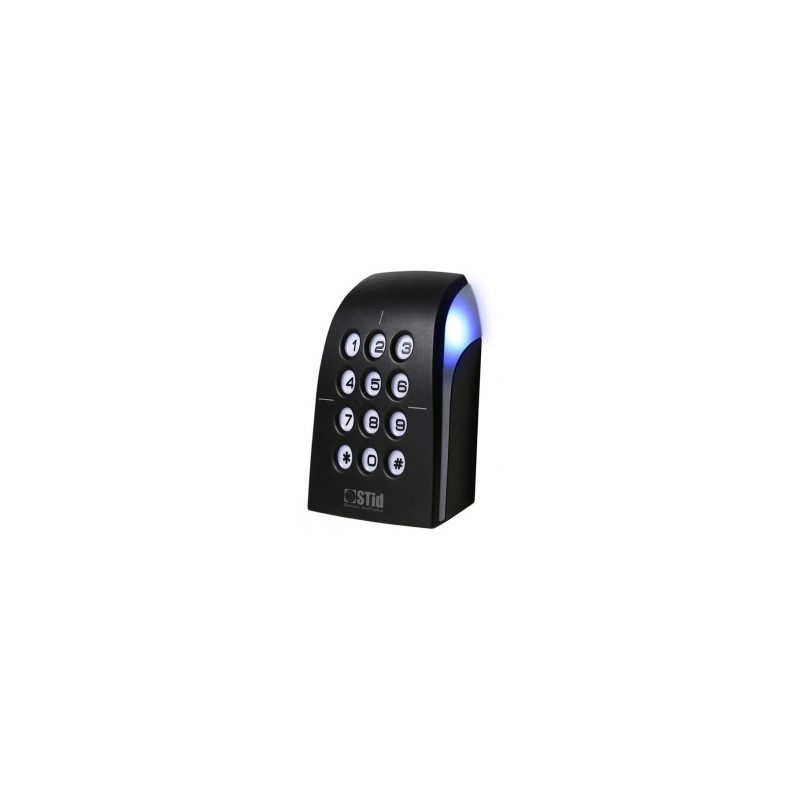

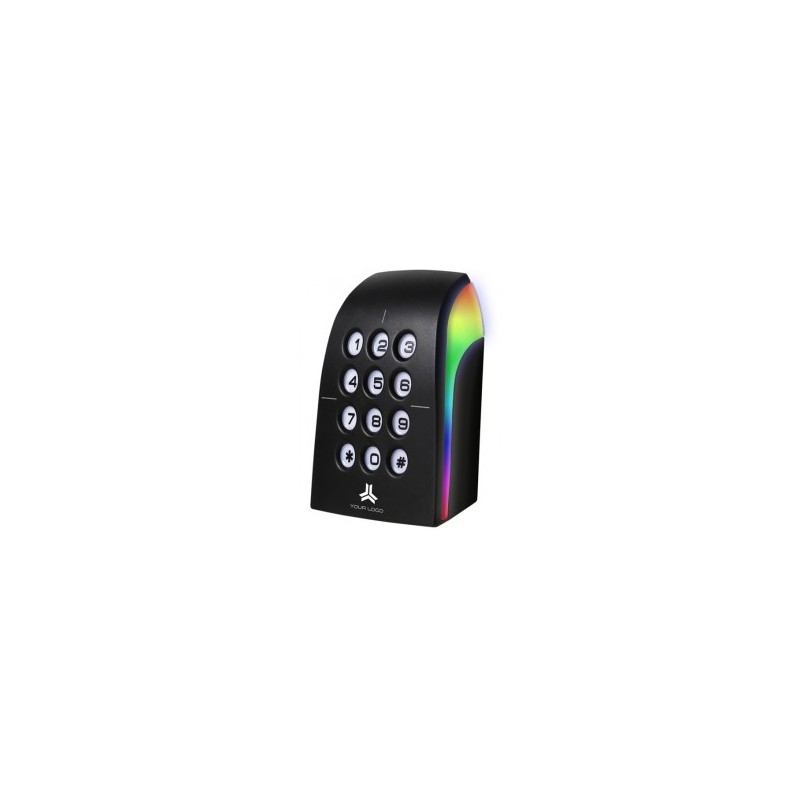

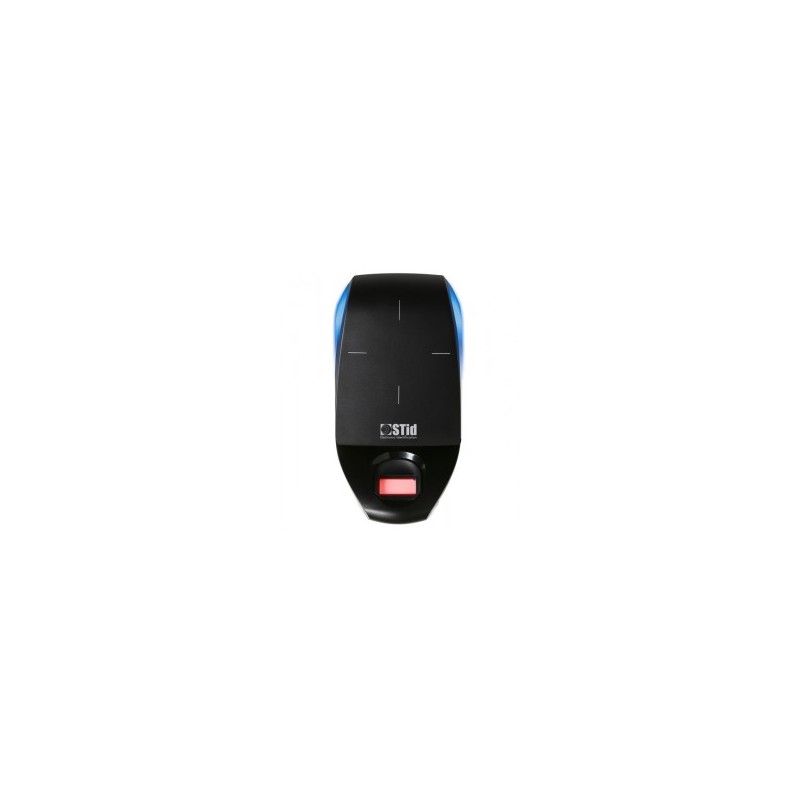

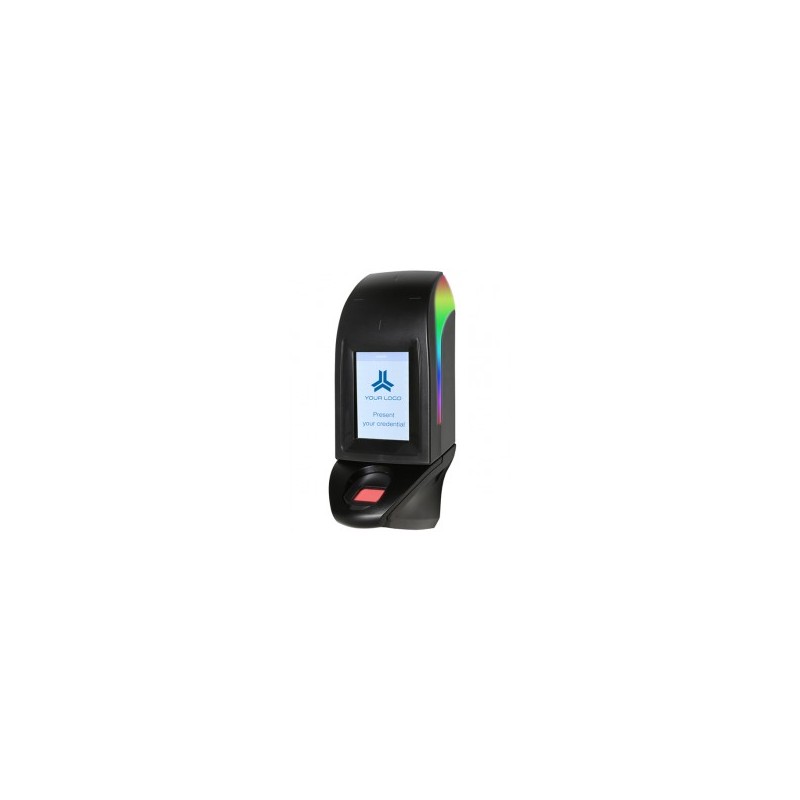

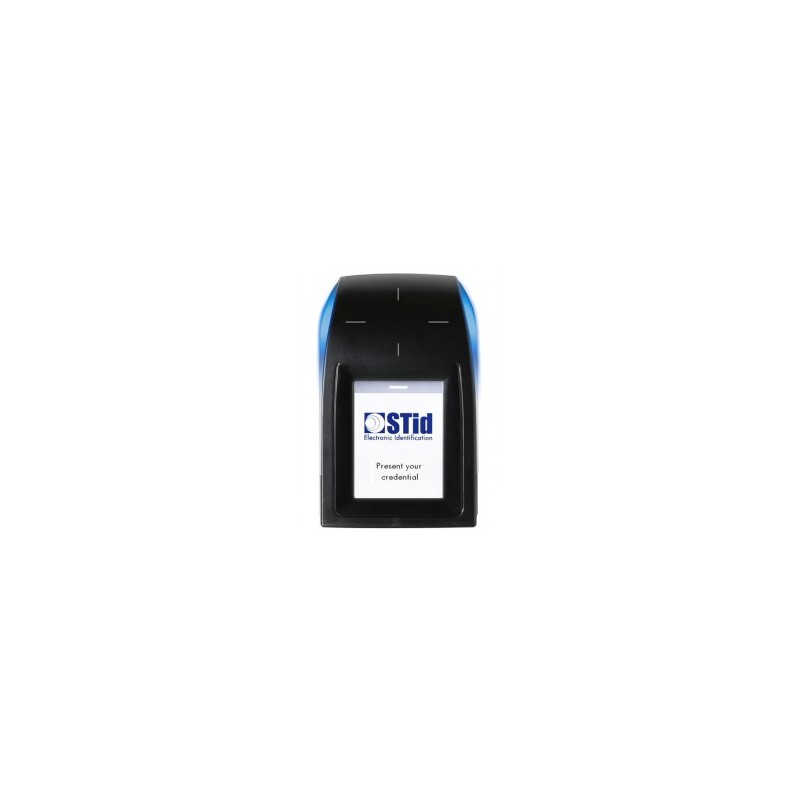

STID Architect Series - ARC A Mifare Version View larger

STID Architect - ARC - Mifare version

ARC-R31-A

The ARC-A reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. It implements public encryption algorithms (TDES, AES, RSA, SHA...), as recommended and recognized by official IT security organization.

Dimensions 107 x 80 x 26 mm / 4.21" x 3.15" x 1.02"
Operating Environment Operating : - 20°C to + 70°C / - 4°F to +158°F / Humidity: 0 - 95%
Operating Voltage Range Typical 100 mA / 12VDC 25% reduction in Eco function
Environmental Rating IP65 Level - Weather-resistant with waterproof electronics / Reinforced vandal proof structure IK10
Certifications CE / FCC / UL
Cryto Processor Hardware Common Criteria Rating EAL5+
Transmit frequency 13.56 MHz - ISO14443 A & B, ISO18092 (NFC), Bluetooth® Smart LE (according version)
Reading Distances Up to 8 cm with a MIFARE® Classic card Up to 6 cm with a DESFire® EV1 card
Integrated UHF chip EPC 1 Gen 2 for reader configuration
Communication interfaces TTL / RS232: Data Clock (ISO2), Wiegand or RS232 TTL / RS485: Data Clock (ISO2), Wiegand or RS485 Optional ciphered S31 / S32 / S33
