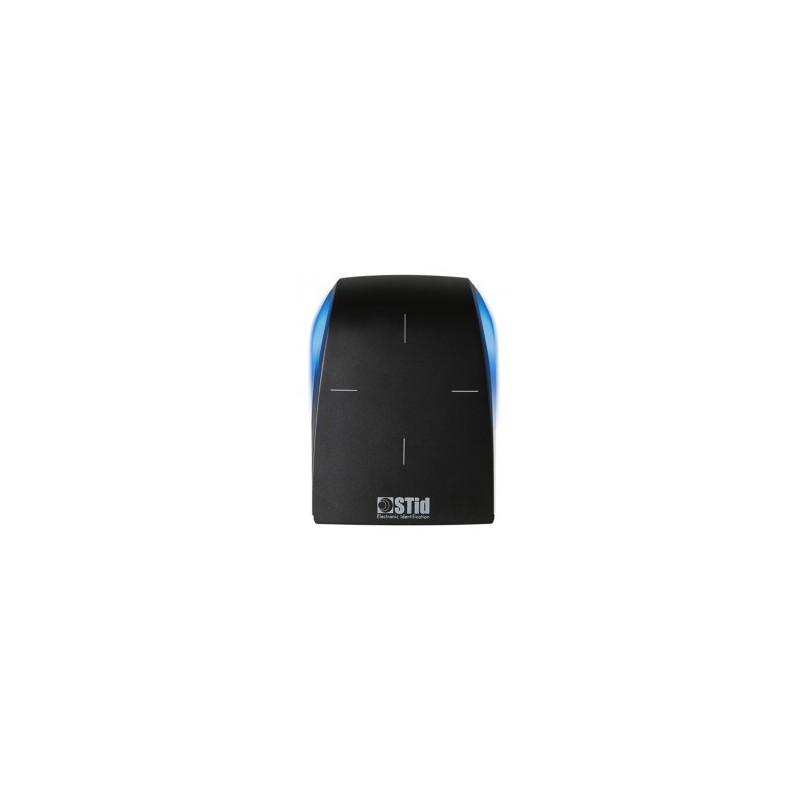

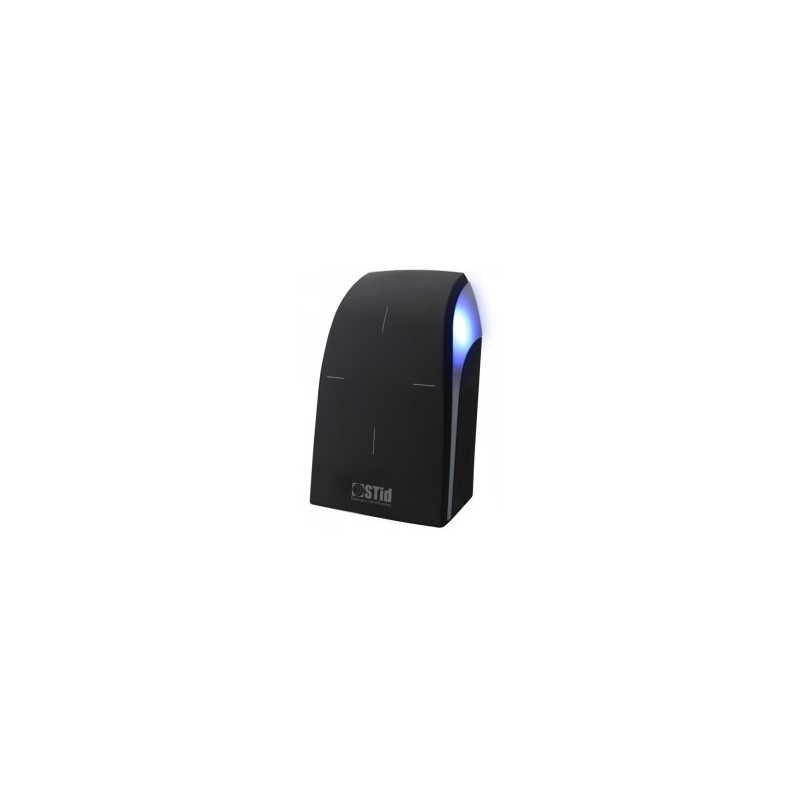

STID Architect Series - ARC A Mifare Version

View larger

STID Architect - LEGIC version

Model ARC-R31-L

The ARC-A reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. It implements public encryption algorithms (TDES, AES, RSA, SHA...), as recommended and recognized by official IT security organization.

Data sheet

Dimensions	107 x 80 x 26 mm / 4.21" x 3.15" x 1.02"
Operating Environment	Operating : - 20°C to + 70°C / - 4°F to +158°F / Humidity: 0 - 95%
Operating Voltage Range	Typical 130 mA / 12VDC
Environmental Rating	IP65 Level - Weather-resistant with waterproof electronics / Reinforced vandal proof structure IK10
Certifications	CE
Cryto Processor Hardware Common Criteria Rating	EAL5+
Transmit frequency	13.56 MHz - ISO14443A, ISO15693, LEGIC® RF Standard
Reading Distances	Up to 8 cm with a LEGIC® Prime card Up to 6 cm with a LEGIC® Advant card
Integrated UHF chip	-
Communication interfaces	TTL / RS232: Data Clock (ISO2), Wiegand or RS232 TTL / RS485: Data Clock (ISO2), Wiegand or RS485
