Evolis - Card Lamination Module Primacy & Agilia

CLM

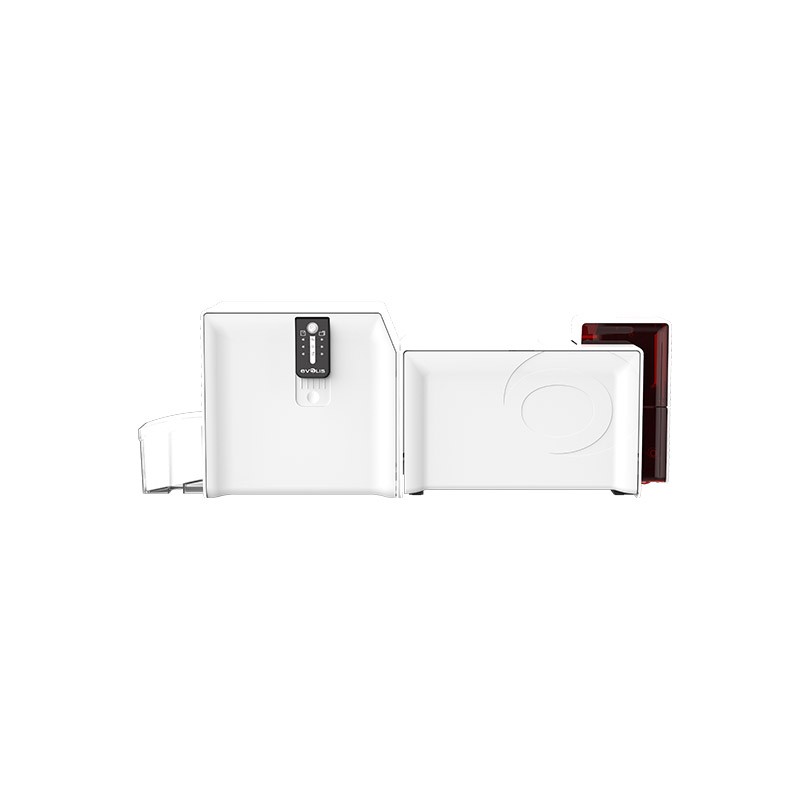

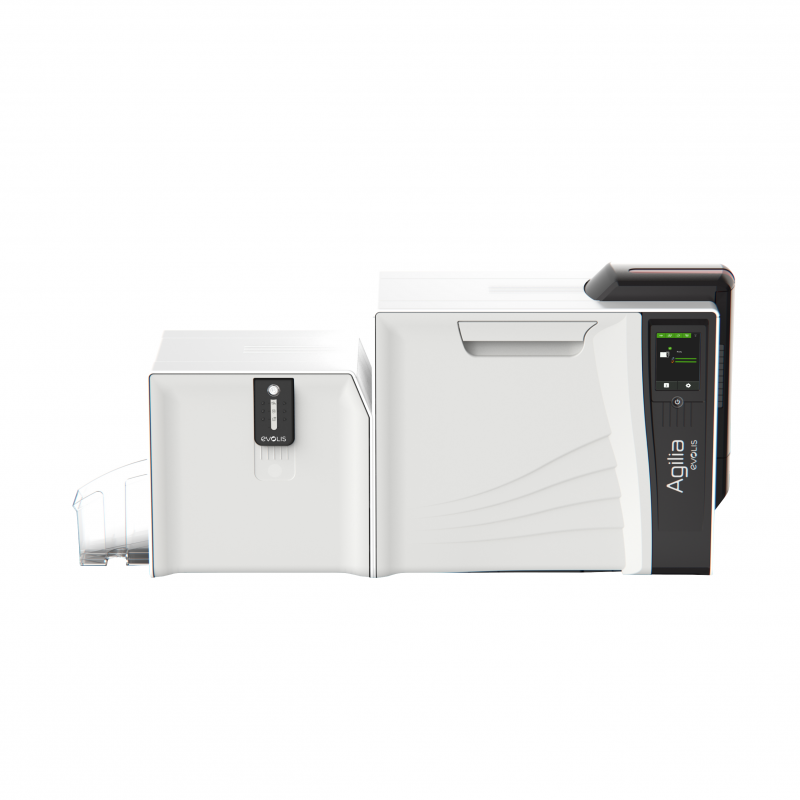

The lamination module enables you to protect all your personalized cards for up to 10 years by applying a film. It can be used alone or in conjunction with Primacy 2 or Agilia printers.

More details

Dimensions 269 x 205 x 753 mm
Weight 6 kg
Warranty 3 years
Input Hopper Card Capacity 100 cards
Output Hopper Card Capacity 100 cards
Cards Size CR80
Cards Thickness 30 mil
General Single or double sided lamination; Integrated card leveler as standard; Functioning coupled with Primacy or Standalone mode.
Display LEDs; LCD Screen in option
Certifications CE, FCC, ICES, VCCI, CCC, KC, BIS, RoHS
Communications Infra red ( no cable) : Connexion Kit include with Primacy; USB for Standalone
  • High-quality lamination: single- or double-sided, speed up to 215 cards/hour.
  • Wide choice of films: full range of high-capacity varnishes and patches, with or without holograms.
  • Intuitive operation : LED panel or LCD panel with QR code for user guidance, easy access to consumables.

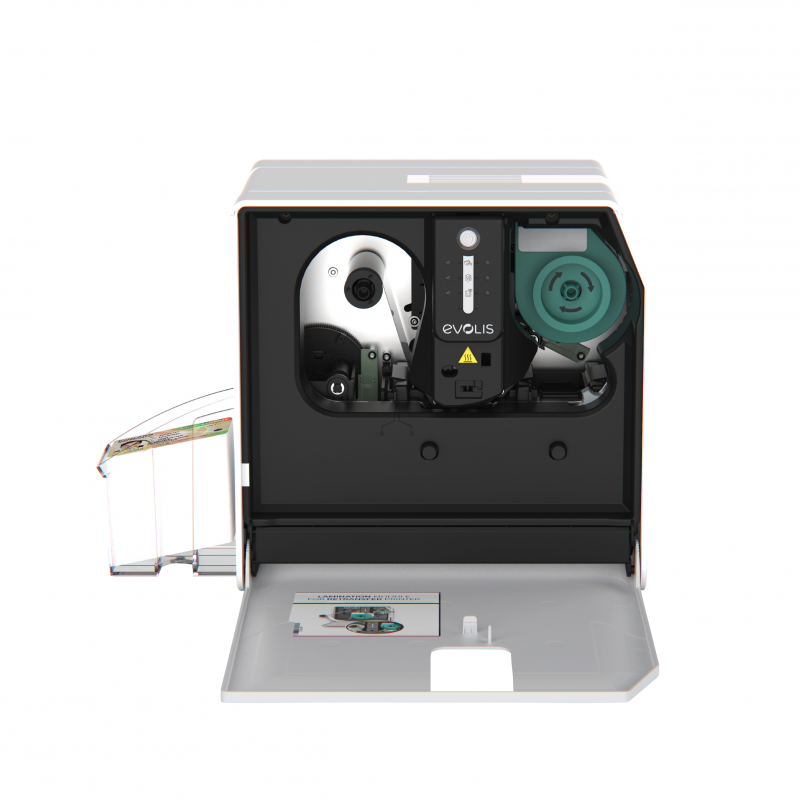

How does the card lamination module work?

Lamination is based on a thermal transfer process and consists of several stages.

  1. The card is transported in the module to the roller, which is heated to 180°C
  2. The film is unwound from the roller and glued to the card
  3. In the case of double-sided lamination, the card is turned over and the previous operation repeated
  4. It then passes through the leveller, which adjusts its planarity by applying pressure
  5. Finally, the card is ejected into the hopper, ready for use

The module reaches a speed of 215 cards/hour single-sided and 110 cards/hour double-sided.
