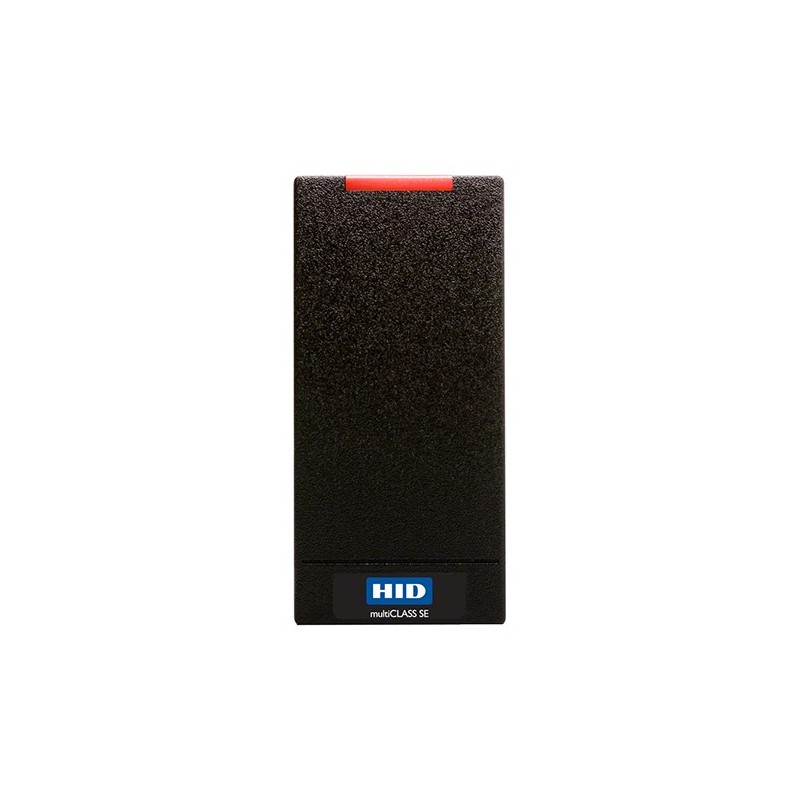

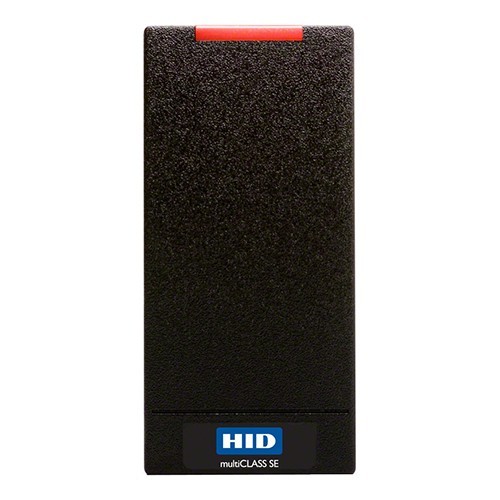

MultiClass SE RP10 View larger

HID - MultiClass SE RP10

900P

HID Global’s iCLASS SE access control platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions

Dimensions 1.9" x 4.1" x 0.9" - 4.8 cm x 10.3 cm x 2.3 cm
Warranty Limited lifetime
Operating Environment Operating : -31º to 150º F (-35º to 65º C) Storage : -67º to 185º F (-55º to 85º C)
Humidity 5% to 95% relative humidity non-condensing
Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model iCLASS Seos: 1.2" (3 cm) iCLASS: 3.1" (8 cm) MIFARE Classic: 2.8" (7 cm) MIFARE DESFire EV1: 1.2" (3 cm)
Typical Read Range (inches) - Tags/Fobs – SIO data Model iCLASS: 1.6" (4 cm) MIFARE Classic: 1.2" (3 cm)
Typical Read Range (inches) - 125 kHz Single Technology ID-1 Cards HID Prox: 2.8" (7 cm) Indala Prox: 1.6" (4 cm) EM4102 Prox: 4.3" (11 cm)
Typical Read Range (inches) - 125 KHz Single Technology Tags/Fobs HID Prox: 1.6" (4 cm) Indala Prox: 0.8" (2 cm) EM4102 Prox: 2.8" (7 cm)
Product Weight (Pigtail) 4.0oz (114g)
Product Weight (Terminal Strip) 3.0oz (85g)
Operating Voltage Range 5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode*** (mA) 75
Current Draw - Intelligent Power Management (IPM) Mode (mA) 40
Peak Current Draw - Standard Power or IPM Mode (mA) 200
NSC Power Consumption - Standard Power Mode (W @ 16VDC) 1.2
NSC Power Consumption - w/ IPM (W @ 16VDC) 0.6
Environmental Rating Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
Pannel connection Pigtail or Terminal Strip
Certifications UL294/cUL (US), FCC Certification (US), IC (Canada),
Cryto Processor Hardware Common Criteria Rating EAL5+
Communications Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results
Transmit frequency 13,56 MHz & 125 kHz
