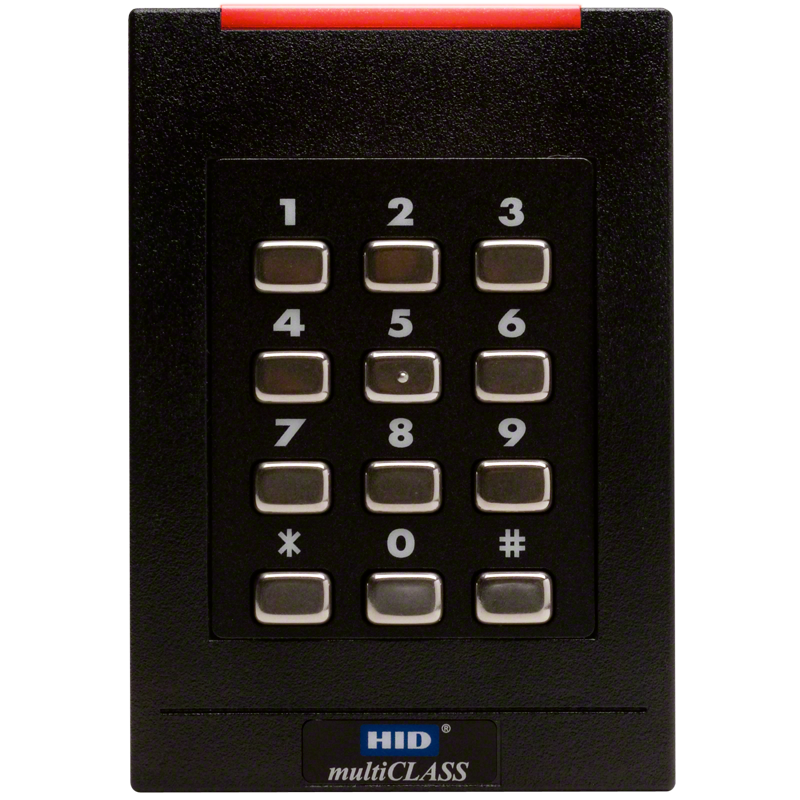

HID - MultiClass SE RPK40

Model 921P

HID Global’s iCLASS SE access control platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions

Data sheet
Download

Dimensions	3.3" x 4.8" x 1.1" - 8.5 cm x 12.2 cm x 2.8 cm
Warranty	Limited lifetime
Operating Environment	Operating : -31º to 150º F (-35º to 65º C) Storage : -67º to 185º F (-55º to 85º C) Humidity : 5% to 95% relative humidity non-condensing
Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model	iCLASS Seos: 1.6" (4 cm) iCLASS: 4.7" (12 cm) MIFARE Classic: 4.3" (11 cm) MIFARE DESFire EV1: 1.6" (4 cm)
Typical Read Range (inches) - Tags/Fobs – SIO data Model	iCLASS: 2.8" (7 cm) MIFARE Classic: 1.6" (4 cm)
Typical Read Range (inches) - 125 kHz Single Technology ID-1 Cards	HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 3.1" (8 cm)
Typical Read Range (inches) - 125 KHz Single Technology Tags/Fobs	HID Prox: 1.6" (4 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.4" (6 cm)
Product Weight (Pigtail)	9.1oz (258g)
Product Weight (Terminal Strip)	8.0oz (228g)
Operating Voltage Range	5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode*** (mA)	95
Current Draw - Intelligent Power Management (IPM) Mode (mA)	70
Peak Current Draw - Standard Power or IPM Mode (mA)	200
NSC Power Consumption - Standard Power Mode (W @ 16VDC)	1.5
NSC Power Consumption - w/ IPM (W @ 16VDC)	1.1
Environmental Rating	Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
Pannel connection	Pigtail or Terminal Strip
Certifications	UL294/cUL (US), FCC Certification (US), IC (Canada),
Cryto Processor Hardware Common Criteria Rating	EAL5+
Communications	Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results
Transmit frequency	13,56 MHz & 125 kHz
