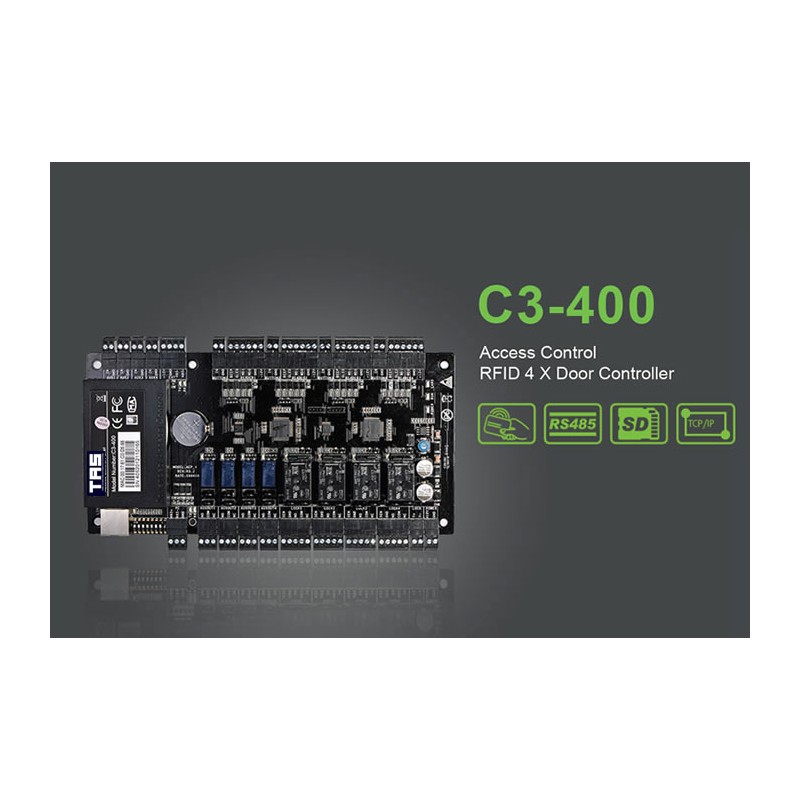

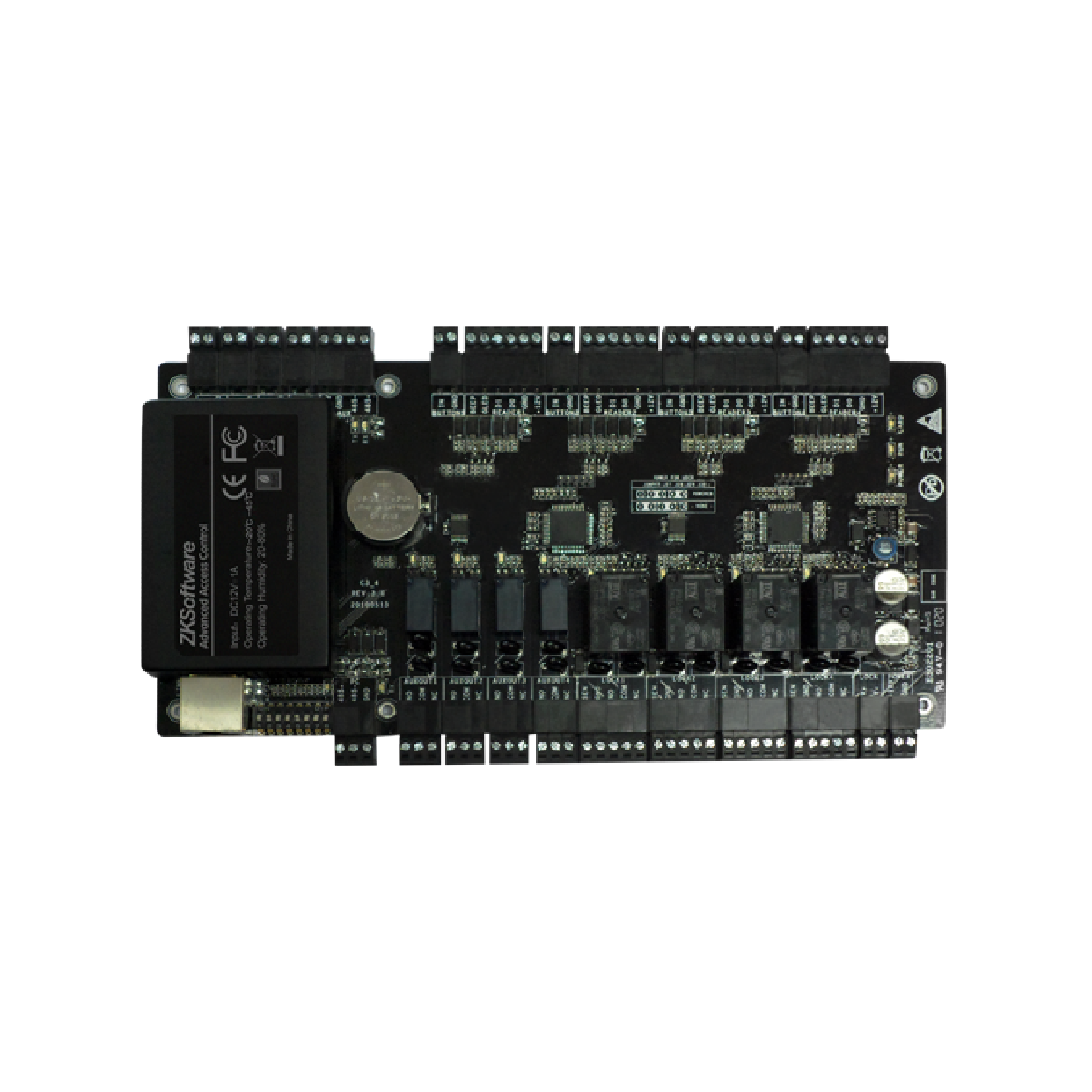

ZKTeco - C3-400

Model C3-400

ZKAccess systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system- all from a web browser. Simply download one instance of our free Windows-based software and then manage the software from any computer’s web-browser which has administrative rights

Data sheet

Dimensions	10″ (160 mm) X 6.6″ (106 mm) X 2 1/2″ (50.8mm)
Weight	3 lbs - 1.36 Kg
Operating Environment	Operating Temp: 32-113 °F (0-45 °C)
Humidity	Operating 20% to 80%
General	4 Doors
Capacity	Users: 30,000, Event Buffer: 100,000 transactions
Communications	RS485, TCP/IP, Wi-fi optional
Number of Inputs	12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs	8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Number of Readers Supported	4 : 26/34bit Wiegand
