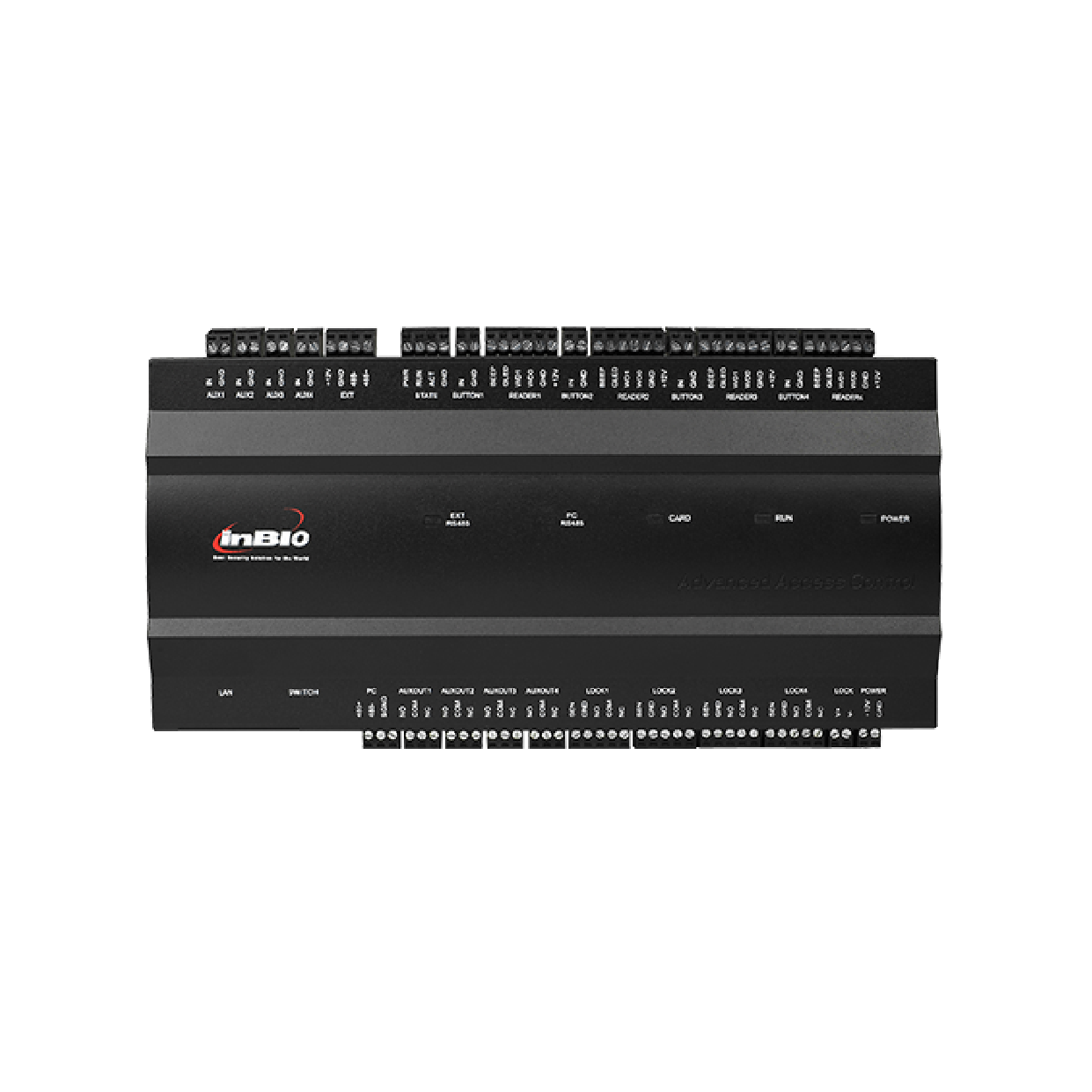

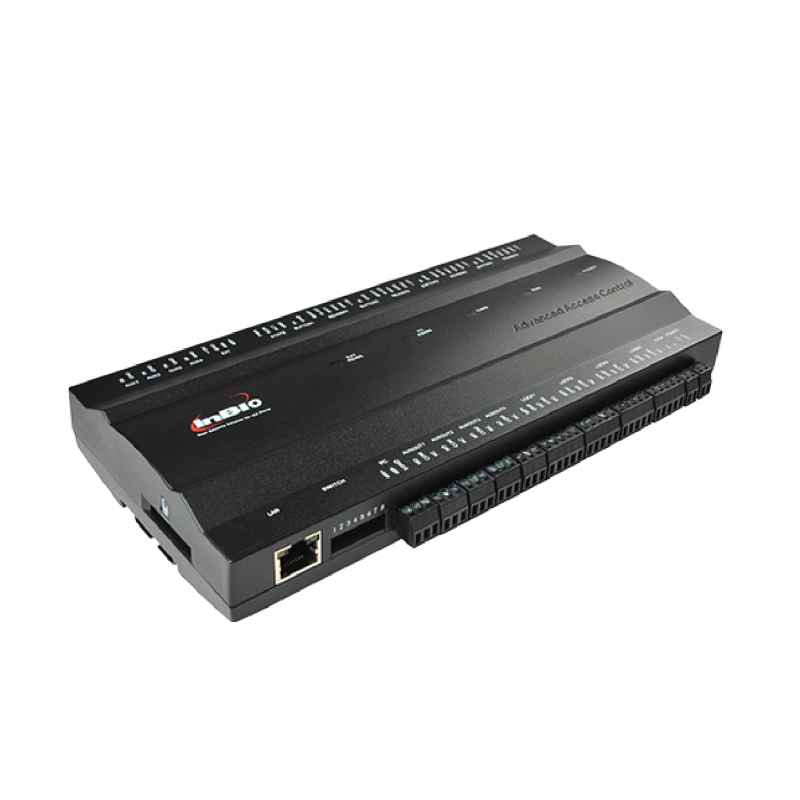

ZKTeco - InBio 460

InBio carries out the matching of fingerprints on the panel, itself. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

ZKTeco - InBio 460

Model inbio460ZKT

InBio carries out the matching of fingerprints on the panel, itself. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication.

Data sheet

Dimensions	10 3/4" x 7 3/4" x 3"
Weight	7.8lbs (3.55kg)
Operating Environment	Operating : 32 to 113 F (0 to 45 C)
Humidity	Operating : 20 to 80%
General	4 Doors
Capacity	Card Users : 30.000 ; Fingerprint Users : 3.000
Communications	RS485 ; TCP/IP
Number of Inputs	12( 4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs	8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
Number of Readers Supported	12 (8 RS-485 Reader, 4 26-bit wiegand reader)
