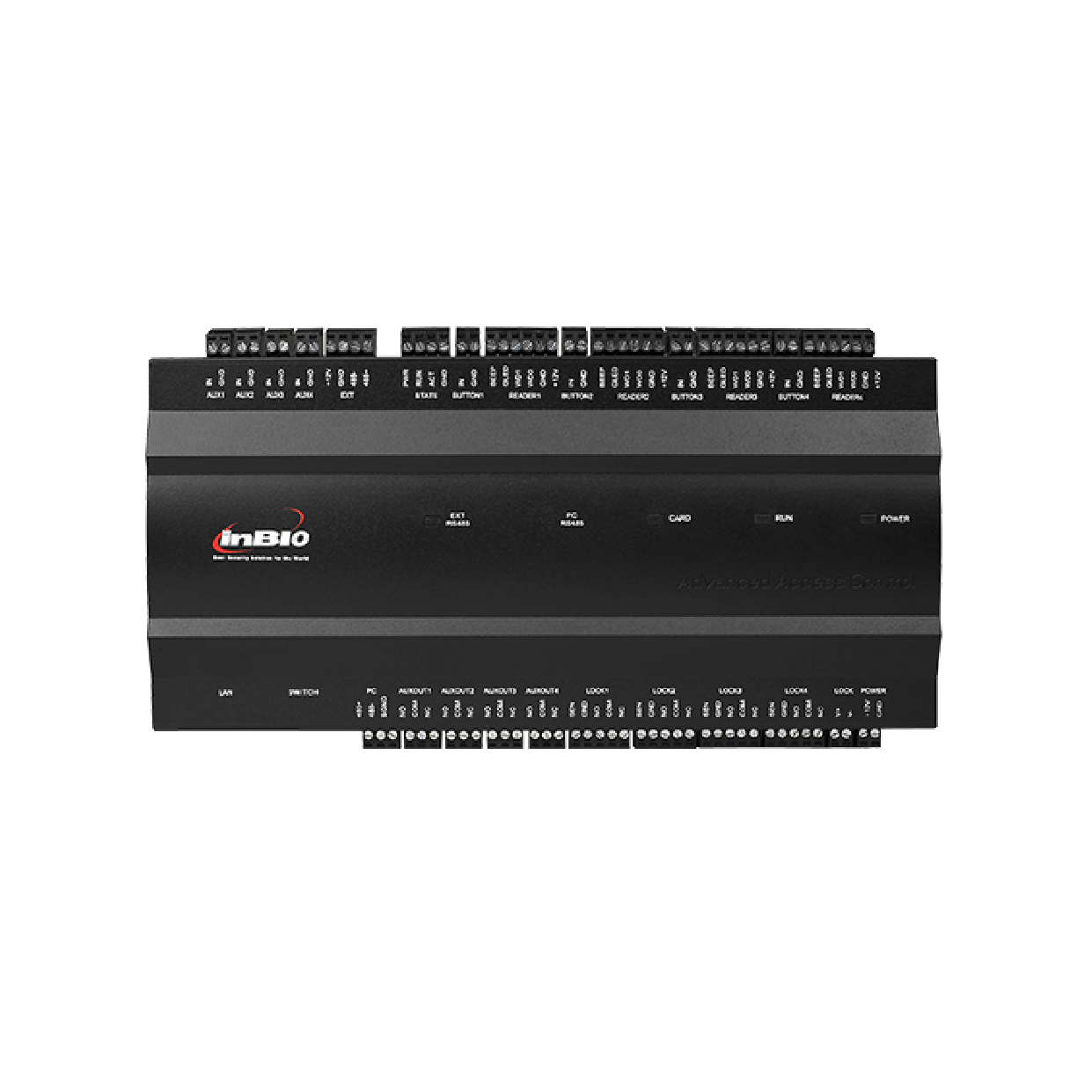

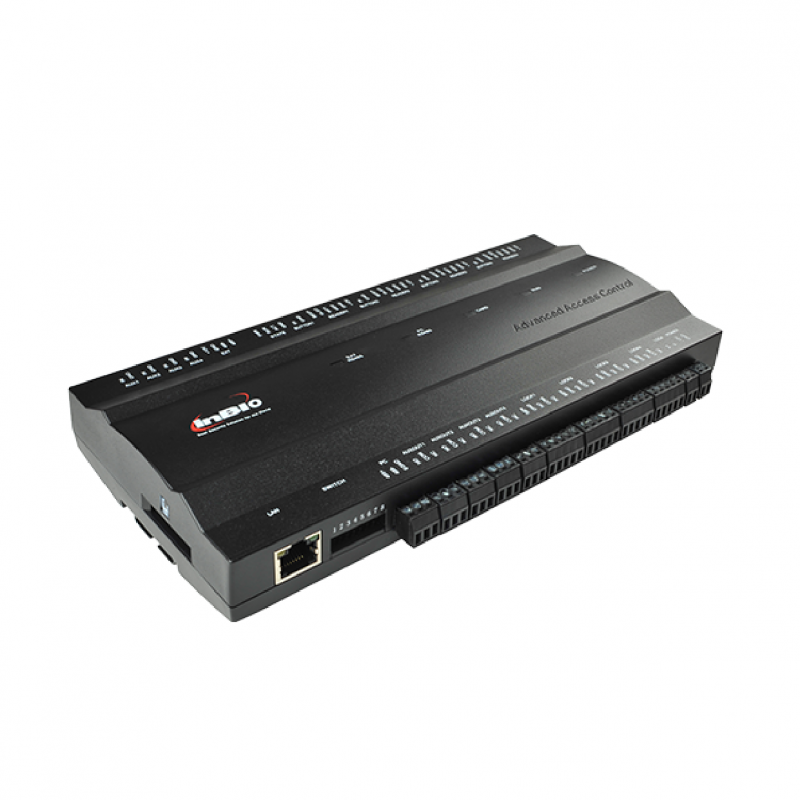

ZKTeco - InBio 260

Model inbio260ZKT

InBio carries out the matching of fingerprints on the panel, itself. The FR Series of readers transmit fingerprint templates to InBio via RS-485 for fast and accurate matching with templates stored in a data-base. InBio controllers install easily on your network and support both TCP/IP and RS-485 communication.

Data sheet

Dimensions	9 3/4" x 7 3/4" x 3"
Weight	7.8lbs (3.55kg)
Operating Environment	Operating : 32° to 113° F (0° to 45° C)
Humidity	Operating : 20 to 80%
General	2 Doors
Capacity	Card Users : 30.000 ; Fingerprint Users : 3.000
Communications	RS485 ; TCP/IP
Number of Inputs	6( 2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs	4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Number of Readers Supported	8(4 RS-485 Reader, 4 26-bit wiegand reader)
