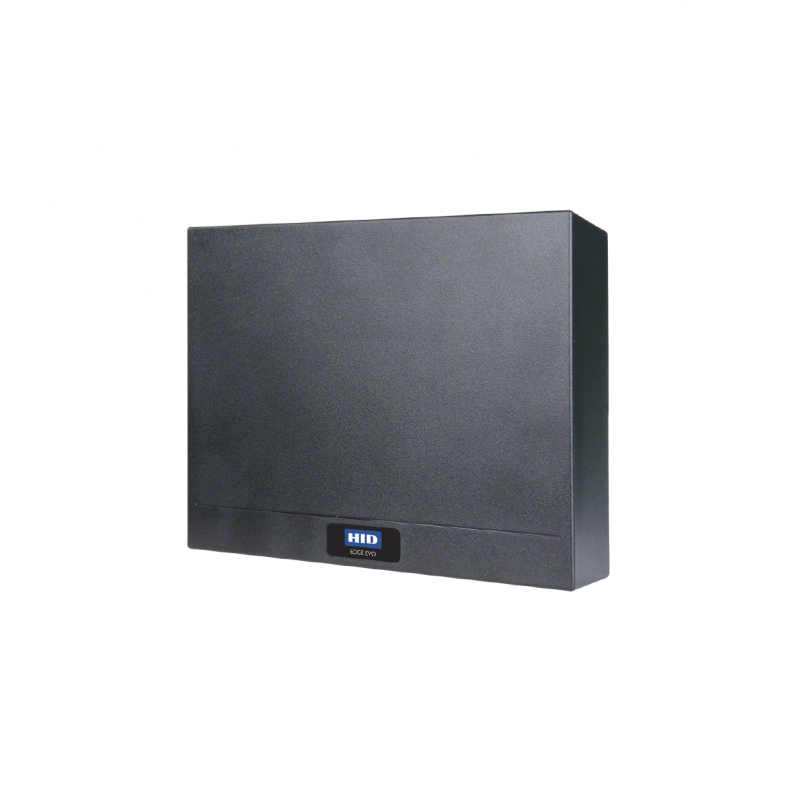

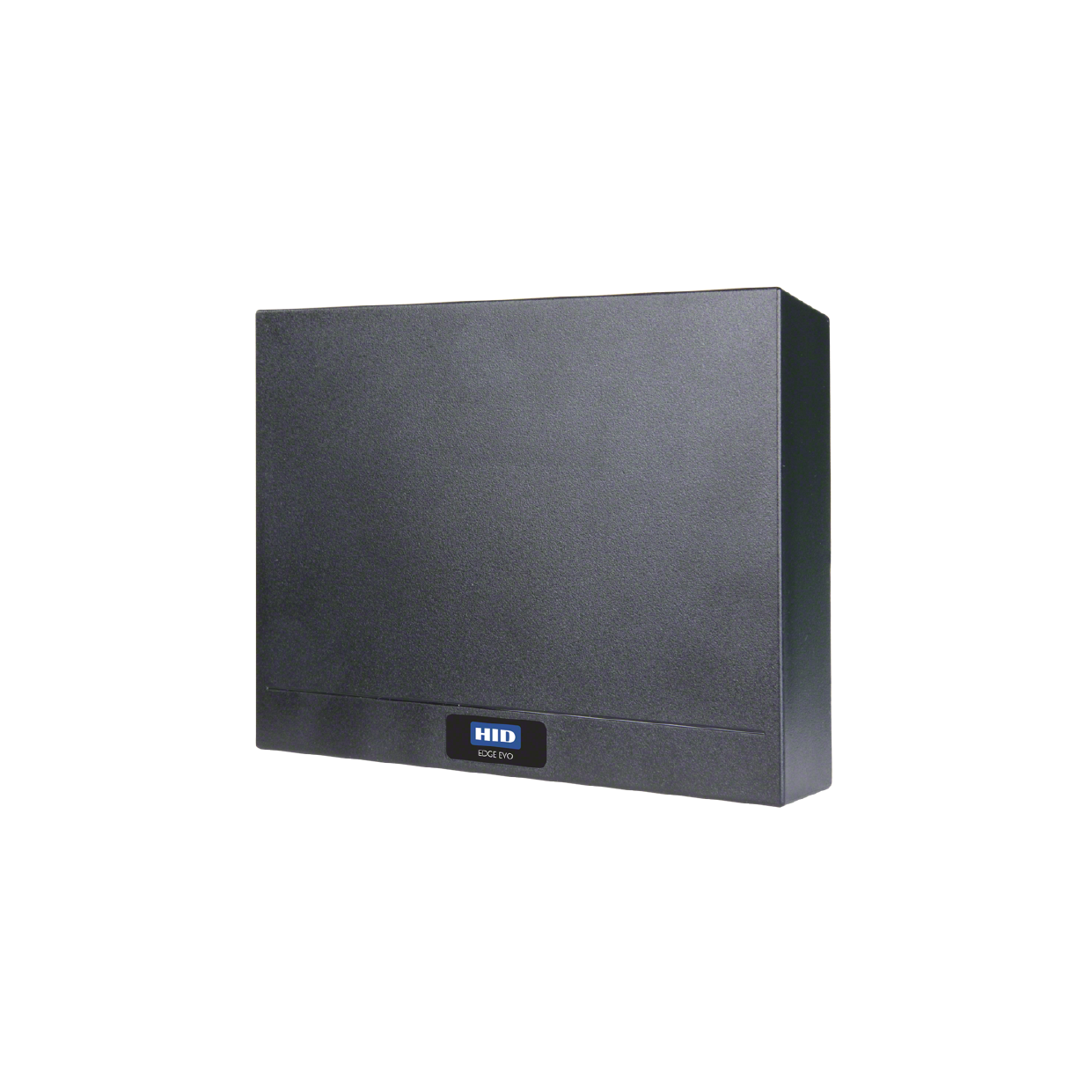

HID - EDGE EVO Solo ESH400-K

Model EH400-K

The EDGE EVO® EH400 is a single-door access control panel featuring Power over Ethernet (PoE). The EH400 makes local door decisions and can interface with one or two Hi-O iCLASS® readers.

Data sheet

Dimensions	3.1 x 4.8 x 1.5" (154.9 x 122.5 x 37.1 mm)
Weight	320g
Operating Environment	Operating : 32 to 122 F (0 to 55 C) Storage : -67 to 185 F ( -55 to 85 C)
Humidity	5 to 95% RH, non-condensing
Features	Open architecture; High performance; Power over ethernet; High security
Certifications	UL294 (US) Listed Component, CSA 205 (Canada), FCC Class A (US), ICES- 003 Class A (Canada), CE Mark EN 301 489-3 EN 55022 EN 50130-4 (EU)
Communications	Ethernet 10/100, HI-O CANbus, Wiegand, Clock-and-Data
