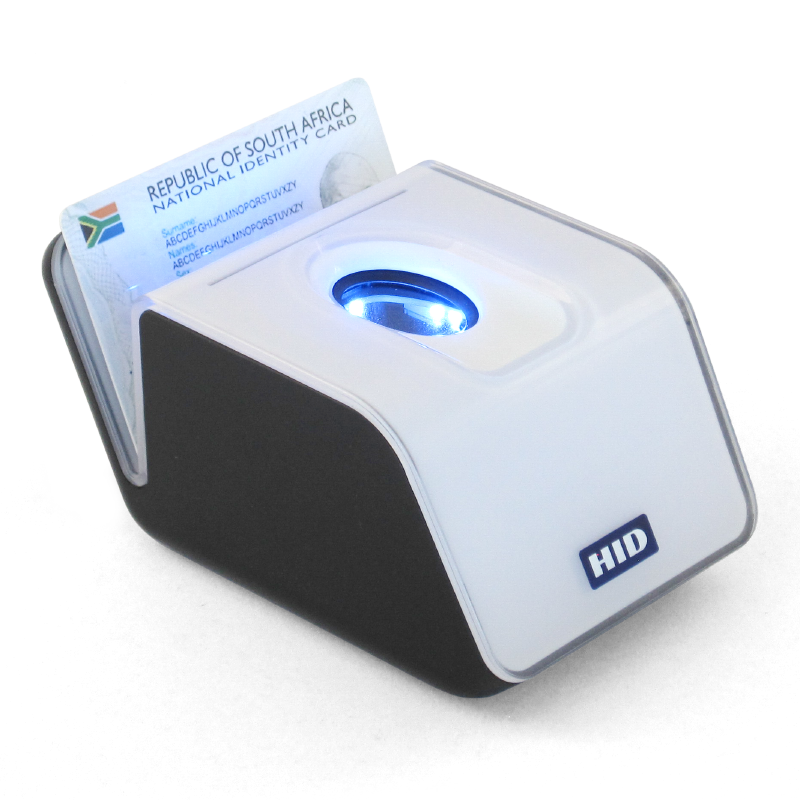

HID - Lumidigm - V371 Fingerprint reader View larger

HID - Lumidigm - V371 Fingerprint reader

V371

The Lumidigm V371 Reader combines industry-leading biometric performance of HID Global's multispectral fingerprint technology and its best-in-class contractless OMNIKEY RF card-reading technology into a single, integrated unit for strong multi-factor authentication.

Dimensions 79.2 mm x 124.3 x 63.2 mm (2.12" x 4.89" x 2.49")
Resolution 500 dpi ; bit depth : 8-bit, 256 grayscale
Operating Environment Operating: 0 to 60 C ; Storage : -20 to 80 C
ESD Immunity ( operating) IEC 61000-4-2 4KV/8kV
Index of Protection IP65 at the platen / IP 53 enclosure
Certifications CE, FCC part 15 Subpart C, RSS Gen, RSS 210, R&TTE Directive including En 300 330, EN 301 489, RoHS , DEA, EPCS, Microsoft WHQL
Communication interfaces High-speed USB 2.0 Bus powered (480 Mbps)
Fingerprint Imaging System Technology Patented Lumidigm optical multispectral imaging
Fingerprint Imaging System Platen Area 0.7" x 1.1" (18mm x 28mm) ellipse
Image Output ANSI 381 compliant, ISO 19794-4:2011, FBI certified WSQ, Flat Binary
Template output ANSI 378 compliant, ISO/IEC 19794-2:2011
Score de vérification (1:1) Requires ANSI 378 template out
Verify (1:1) template storage N/A on device, unlimited on PC
Identify (1:N) template storage Up to 5,000 users on USB host (SDK 6+); up to 1000 users per group, unlimited groups (SDK5) Note : 1:N templates not compatible between SDK 5 and SDK 6
Encryption Encrypted video for privacy/playback protection
Interoperability ANSI 378, ISO 19794-2:2011, ANSI 381, ISO 19794-4:2011, NFIQ compliant, MINEX III-certified algorithm
Contactless card interface 13.56 MHz
Supported smartcards ISO14443A/B ISO15693
Supported credentials MIFARE Classic, MIFARE DESFire 0.6, and MIFARE DESFire EV1 contactless cards
Transmission rate Up to 848 kb/s
Liveness Detection Included
Identification (1:N) Uses ANSI 378+ templates as input
Latent protection Included
