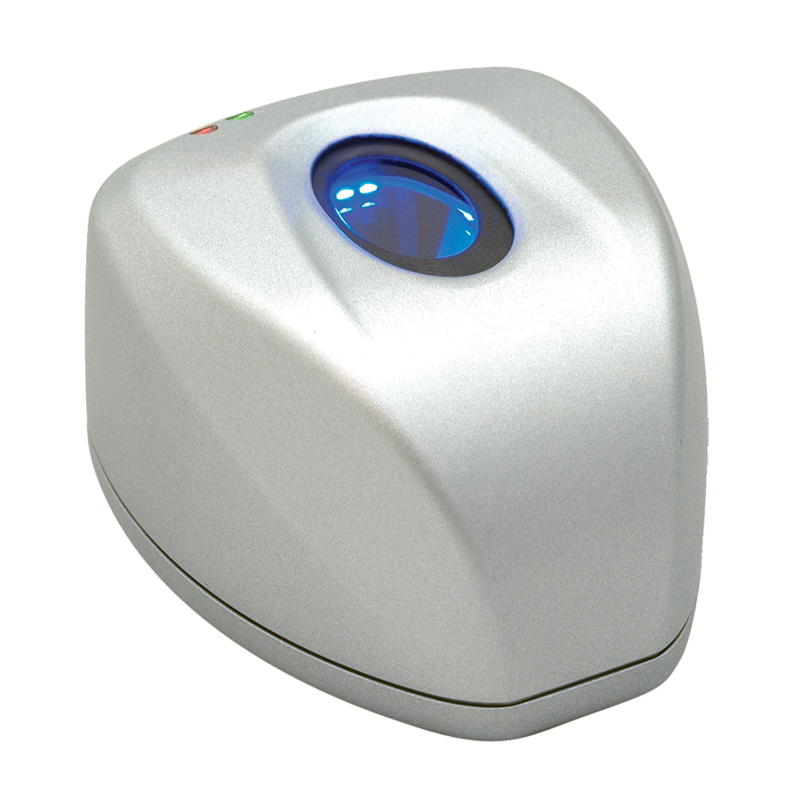

HID - Lumidigm V302-xx - Fingerprint sensor View larger

HID - Lumidigm V302-xx - Fingerprint sensor

V302-xx

Lumidigm V-series sensors deliver an unmatched ability to acquire excellent biometric interoperability and best-in-class liveness detection in a robust device for a low total cost of ownership in a wide variety of fingerprint authentification applications.

Dimensions 3.25" x 4.00" x 2.35" (83mm x 102mm x 60mm)
Operating Environment -10 to 60 C
Humidity 0-100% RH condensing
ESD Immunity ( operating) IEC 61000-4-2 Level 4+/-15kV Air
Certifications CE, FCC Part 15 Class B, EN 60950, IEC 62471, RoHS, DEA EPCS, Support for thin clients
Communication interfaces USB 1.1 or 2.0 (480 Mbps)
Fingerprint Imaging System Technology Patented Lumidigm optical Multispectral imaging
Fingerprint Imaging System Image Resolution 500 dpi
Fingerprint Imaging System Platen Area 0.7" x 1.1" (18mm x 28mm ) ellipse
BIometric Functions, Latent and Liveness detection Yes ( field-updatable algorithm )
Ingress Protection IP65 dust and water protection
Image Output ANSI 381, WSQ compression
Template output ANSI 378
Verify (1:1) Template match score ANSI 378
Identify (1:N) score ANSI 378
Verify (1:1) template storage Up to 1,000
Identify (1:N) template storage Up to 400 users (V302-30 only)
Finger touch to image capture 800 ms (typical)
Finger touch to image out 1.3 sec (typical)
Finger touch to 1:1 score/template 2.0 sec (typical)
Finger touch to 1:N score 2.1 sec (typical, V302-30 only)
Liveness Detection (when enabled) 500 ms V30x-30, 100 ms on prior versions (typical)
Encryption N/A
Interoperability ANSI 378, ISO 19794-2:2005, ANSI 381, ISO 19794-4:2005, MINEX 2004, NFIQ
