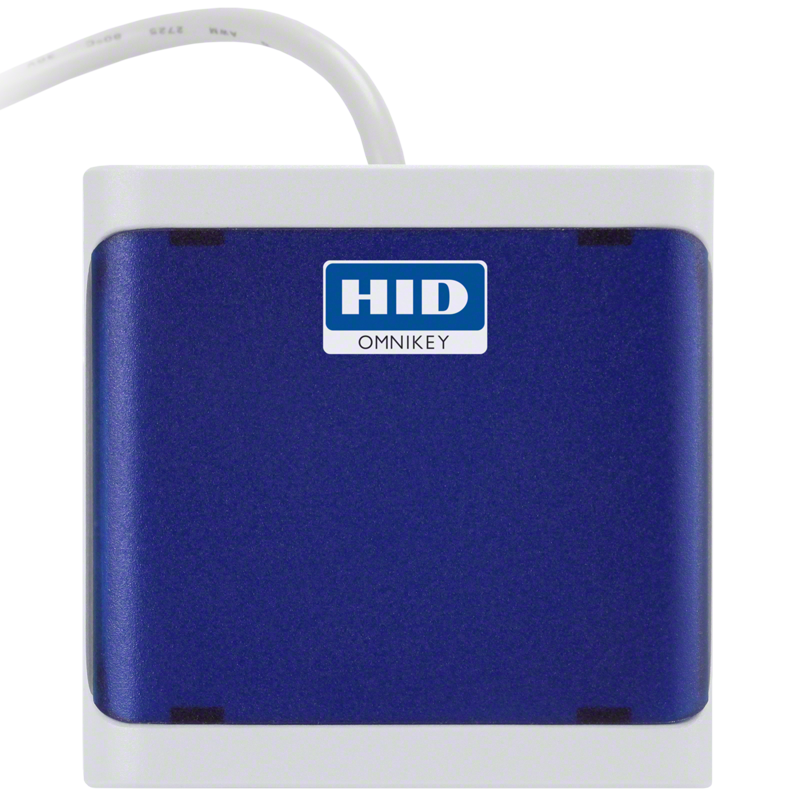

HID OMNIKEY 5022 - USB Reader

Model 5022

HID Global’s OMNIKEY® 5022 enables strong authentication to data and cloud applications, supporting 13.56MHz credentials such as iCLASS Seos,iCLASS®, DESFire® or MIFARE®.Typical environments for the reader include healthcare, pharmaceutical,financial services, enterprise, government and other agencies seeking higher security and access management.

Data sheet

Dimensions	2.32"" x 2.32" x 0.44" (59 x 59 x 11,4 mm)
Weight	70g (2.5oz)
Operating Environment	Operating : 0-70°C (32 to 158 °F) Storage : -40 - 80°C (-4 - 176 F)
Environmental Rating	WEEE, RoHS2, Reach
Certifications	CE, FCC, UL, KCC, RCM
Communication interfaces	USB 2.0 Full Speed Device (12 MBps) USB 3.0 extended operability, tested with hubs/controllers
Card Compatibility	ISO 14443 A/B, ISO 15693, iClass®, Seos® (OTP only), MIFARE® Classic / Ultralight / Ultralight C / Plus, MIFARE DESFire® / DESFire EV1 / DESFire EV2.
Protocols	MIFARE®, iCLASS® ISO 14443A/B - up to 848 kbps (selon la carte) ISO 15693 - Jusqu'à 26 kbps (Selon la carte) NFC Tag 1-4*
