iCLASS SE Decor Reader - HID

The iCLASS SE Decor reader is a flush-mounted or inset reader designed to meet the security needs for an organization, while providing a sleek new design for various architectural and style requirements. The decor reader can be used with multiple form factors, including smartphones and other mobile devices utilizing Seos

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

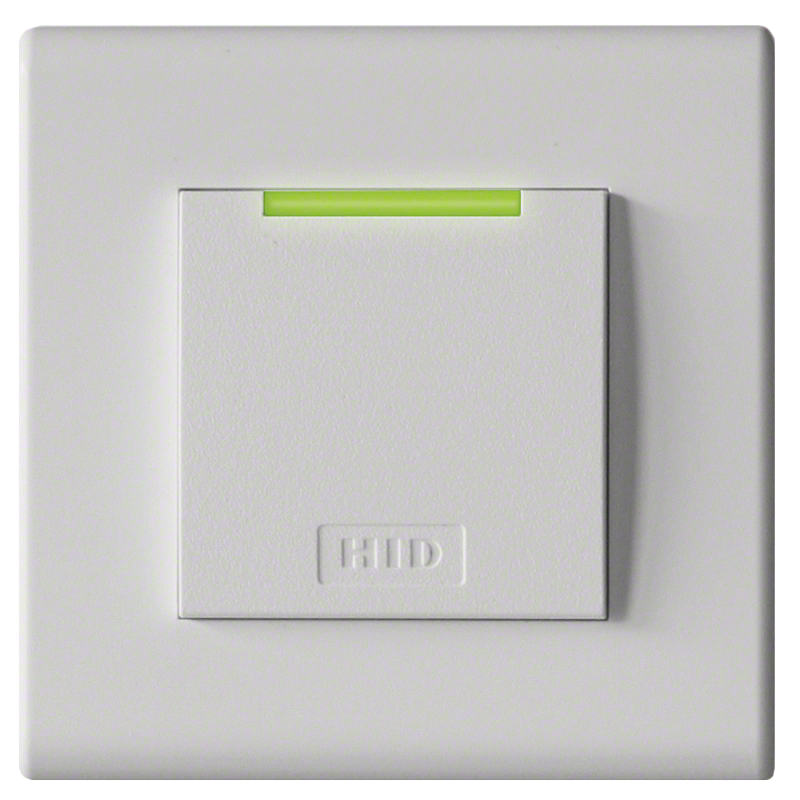

iCLASS SE Decor Reader - HID

Model R95A

The iCLASS SE Decor reader is a flush-mounted or inset reader designed to meet the security needs for an organization, while providing a sleek new design for various architectural and style requirements. The decor reader can be used with multiple form factors, including smartphones and other mobile devices utilizing Seos

Data sheet

Operating Environment	Operating : -31º to 150º F (-35º to 65º C); Storage : -67º to 185º F (-55º to 85º C)
Humidity	5% to 95% relative humidity non-condensing
Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model	iCLASS Seos: 1.2" (3 cm) iCLASS: 3.1" (8 cm) MIFARE Classic: 3.1" (8 cm) MIFARE DESFire EV1: 1.2" (3 cm)
Typical Read Range (inches) - Tags/Fobs – SIO data Model	iCLASS: 2.0" (5 cm) MIFARE Classic: 2.0" (5 cm)
Certifications	FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), RoHs
Cryto Processor Hardware Common Criteria Rating	EAL5+
Communications	Optional OSDP with SCP over RS485 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) – Use shielded cable for best results
13.56 MHz Credential Compatibility	iSecure Identity Object™ (SIO® Non-default programmable options include: additionally support – standard iCLASS® Access Control Application (order with standard interpreter)
