3M™CR100 - MRZ View larger

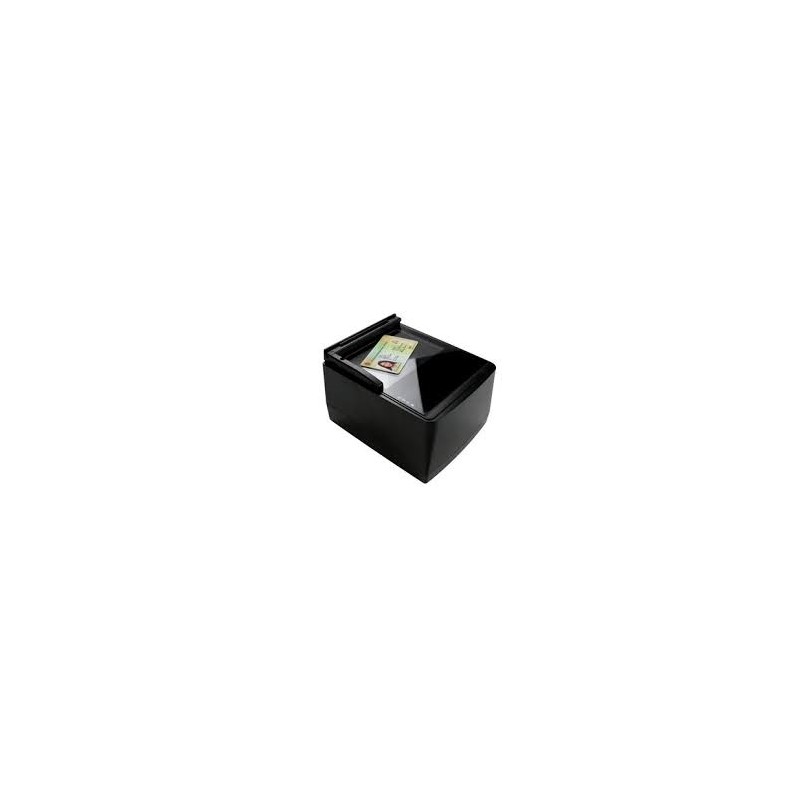

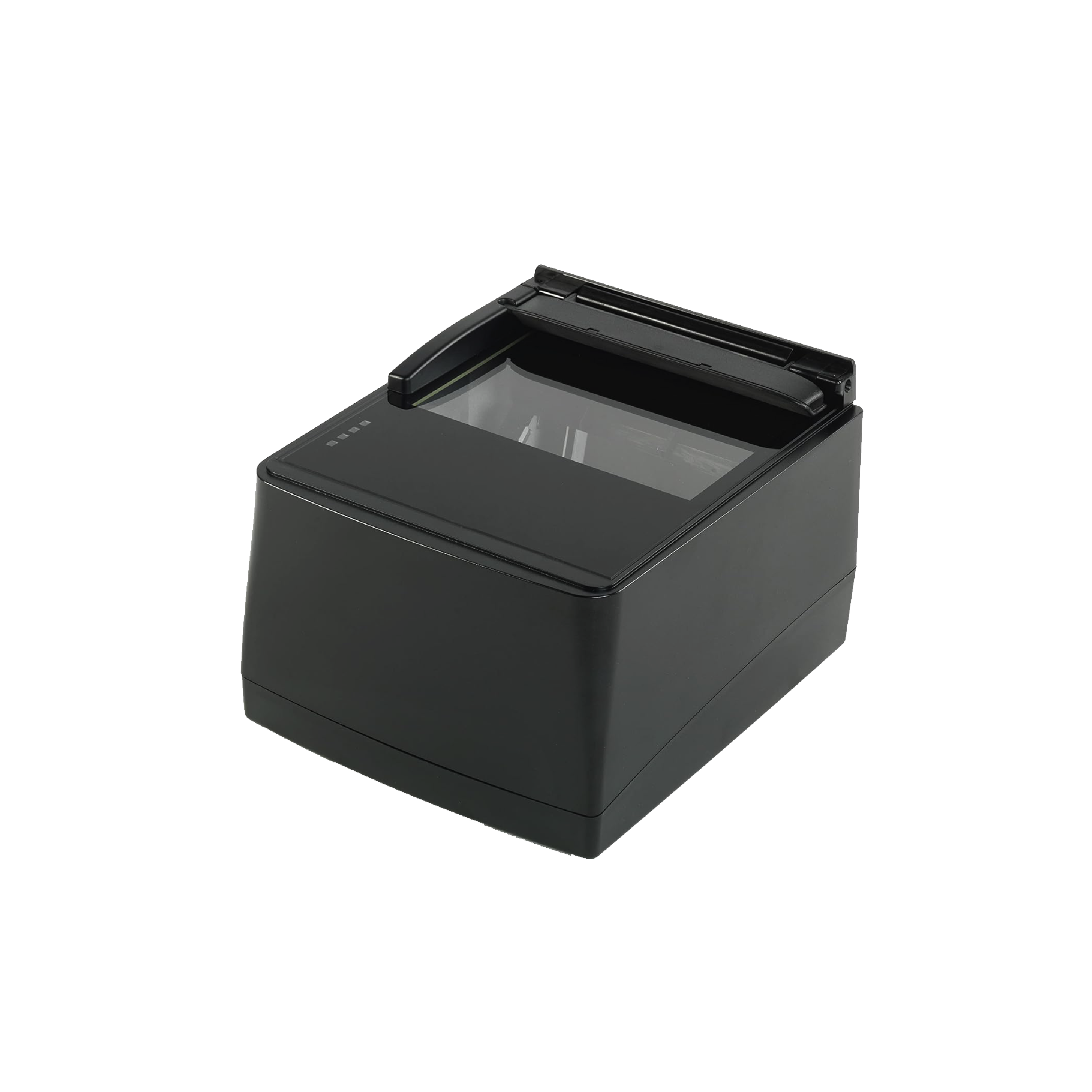

Gemalto KR9000

The KR9000 Full Page Reader is used to inspect and image travel documents, including electronic travel documents and 1D and 2D barcodes used by the airline industry on boarding passes. The reader’s low profile and simple shape make with self-service kiosks, counters and eGates at airports terminals

More details

Dimensions - Length: 19.0 cm (7.5”) - Width: 16.2 cm (6.4”) - Height: 12.3 cm (4.8”)
Weight 1.1 kg (2.4 lbs)
Warranty 1 Year
Resolution 400 DPI high resolution imaging - Multiple wavelength illumination – Visible, IR, UV - 3M™ Confirm™ Security Laminate imaging (optional)
Connectivity USB 2.0 high speed compatible - Integrated USB 2.0 Hub – 2 ports for external peripherals
System Integration ISO 14443 Type A and B contactless ICs -including Active and Passive authentication- SDK including DLL, OCX compatible Visual C ++ ®, Visual Basic®, C ++ Builder®
Regulatory UL et UL-C, CE, CB - FCC Part 15 Class A - WEEE/RoHS
Operating Environment Humidity: 20 to 95% (R.H. non-condensing) -Temperature: -10º to 50º C operating; -20º to 50º C storage - IP50 rating for dust ingress protection in the optical chamber
Features Complete access to OCR data and images captured via Software Development Kit (SDK), formats BMP, PNG ou JPEG - Auto-triggering of document capture
Documents Processing ICAO compliant documents in near infrared (IR) per ICAO 9303 specification - 1D barcodes (2 of 5 interleaved, 2 of 5 industrial, Code 128, and Code 39) - 2D ( PDF 417, QR, DataMatrix ™, Aztec formats).
