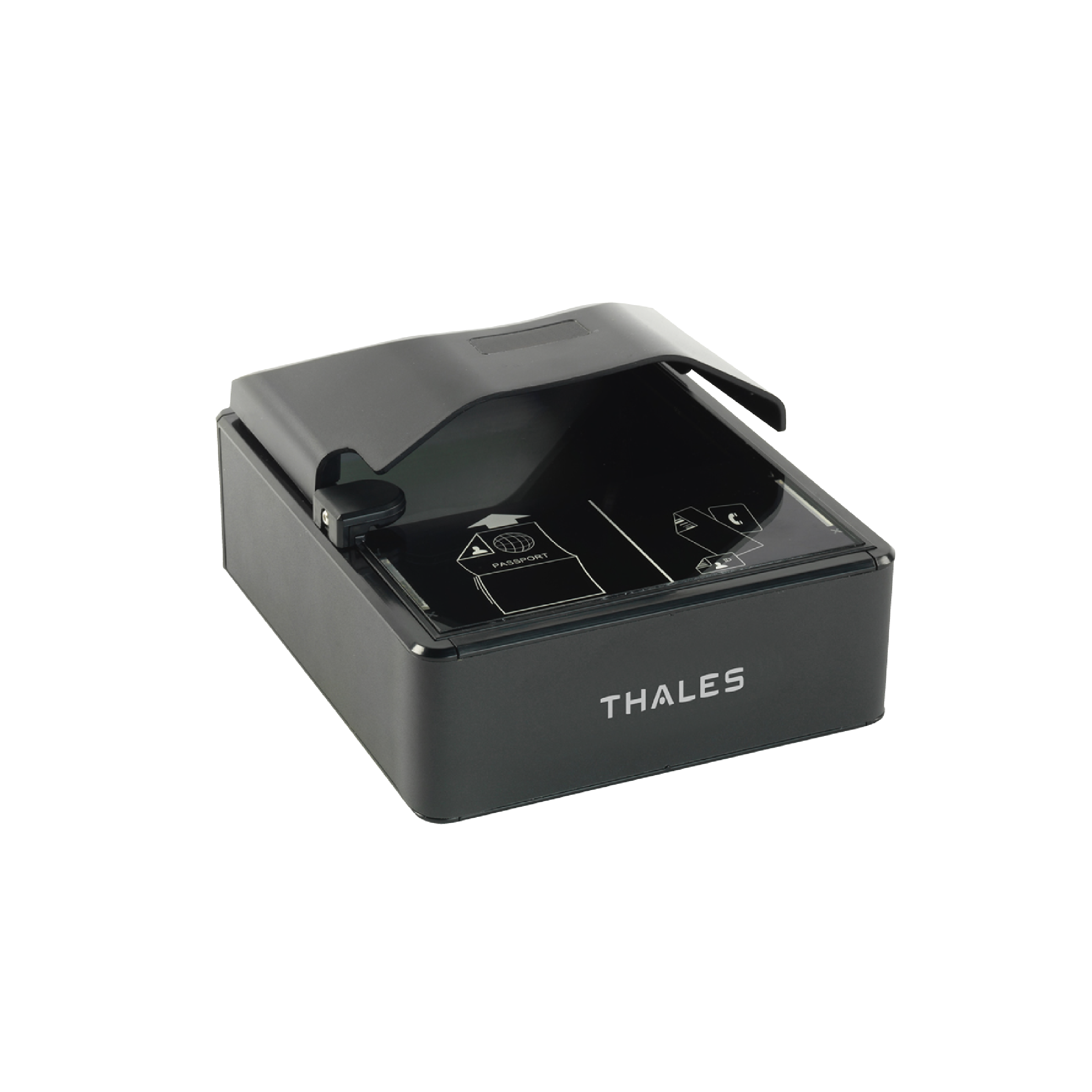

Gemalto Document Reader AT10K

Designed for use in demanding border management scenarios,the AT10K is based on detailed and exhaustive analysis of field experience and numerous deployed projects.

Gemalto has created a new stylish look that will fit into the décor of the most upmarket Customer facing service desks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Gemalto Document Reader AT10K

Model

Designed for use in demanding border management scenarios,the AT10K is based on detailed and exhaustive analysis of field experience and numerous deployed projects.

Gemalto has created a new stylish look that will fit into the décor of the most upmarket Customer facing service desks

Data sheet
Download

Dimensions	Length: 18.7cm - Width: 16.cm (6.3”) - Height: 10.3cm
Weight	1 kg or 2.2 lbs
Warranty	1 Year
Resolution	400 DPI high resolution imaging
Connectivity	USB 2.0 high speed compatible
System Integration	ISO 14443 Type A and Type B ICs - Active and Passive authentication of ePassports. - Full SDK including DLLs, OCXs and demonstration programs. Support for Visual C++®,Visual Basic®, C++ Builder®
Regulatory	FCC Part 15 Class A · UL, UL-C · CE, CB · WEEE/RoHS1
Operating Environment	Humidity: 20 to 95% (R.H. non-condensing) - Temperature: -10º to 50º C operating; -20º to 50º C storage
Features	OCR data capture· Complete access to OCR data and images captured via Software Development Kit (SDK)· Enables images to be accessed as BMP, PNG or JPEG format· Auto-triggering of document capture – presence of document is automatically detected
Documents Processing	ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 - 1D barcodes (2 of 5 interleaved, Code 128, and Code 39) - 2D barcodes (PDF 417, QR, DataMatrix™ and Aztec formats) from paper documents and some mobile devices
