3M™CR100 - MRZ View larger

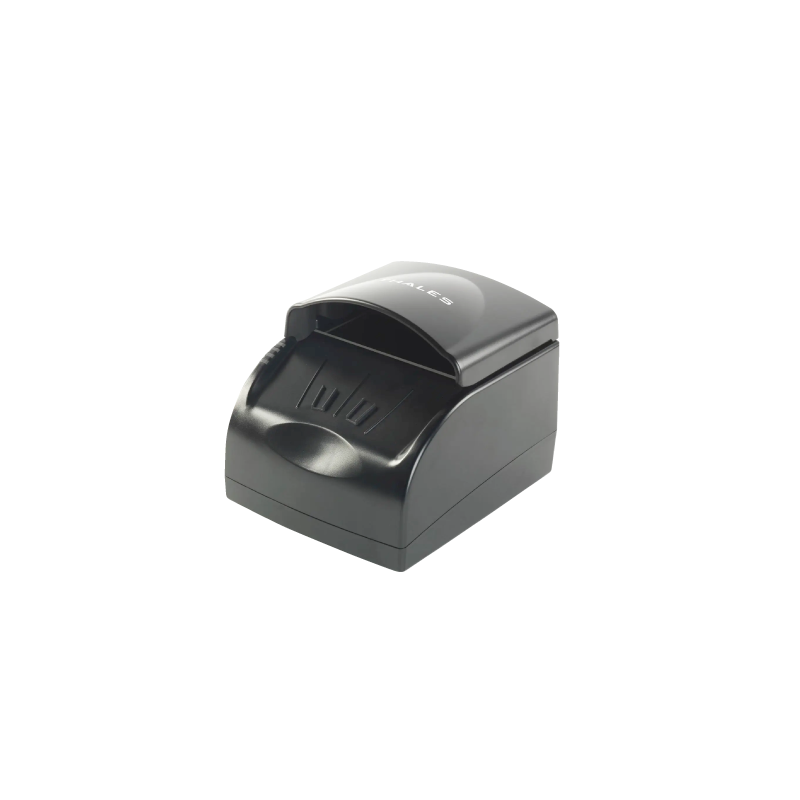

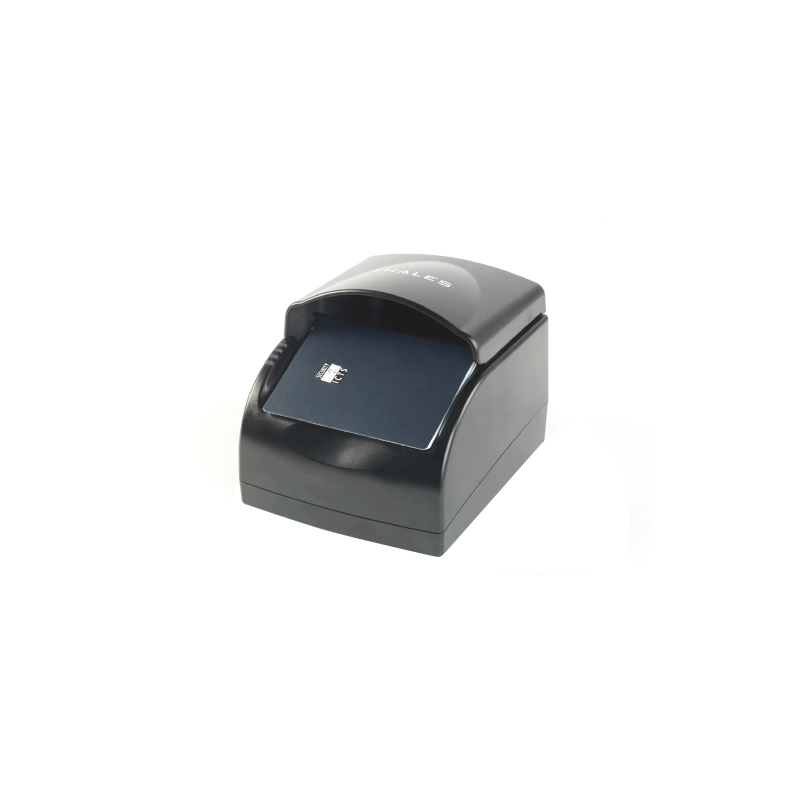

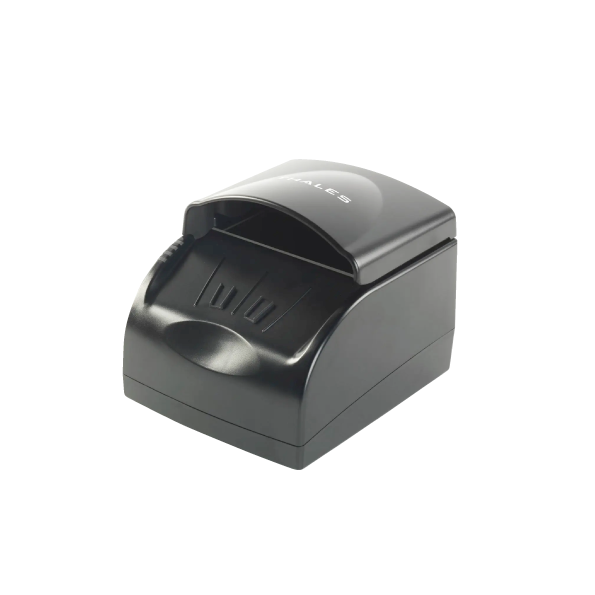

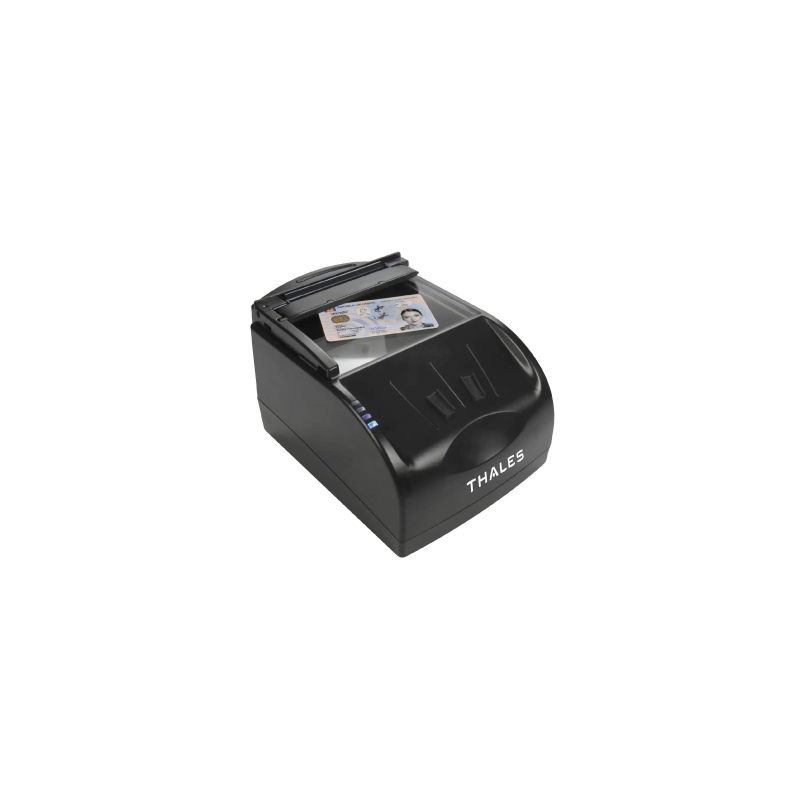

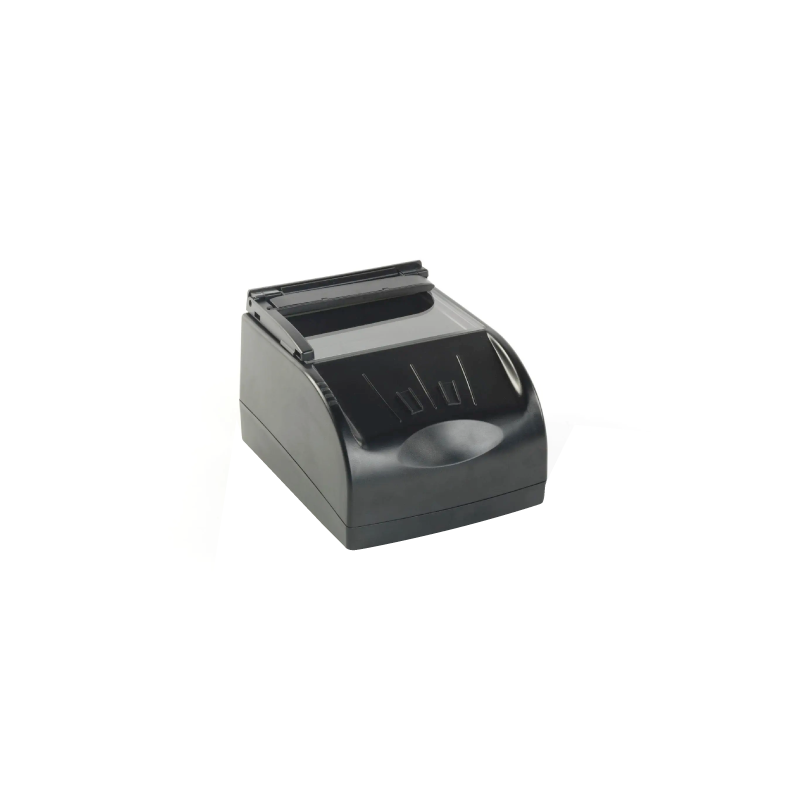

Gemalto AT9000 MK2

The AT9000 is an accurate, easy to use, ID document reader which Reads and authenticates multiple document types quickly, easily and accurately. Support for ICAO-compliant and non-compliant travel documents

More details

Dimensions Length: 19.0 cm (7.5”) - Width: 16.2 cm (6.4”) - Height: 15.7 cm (6.2”) (with light shield)
Weight 1 kg or 2.2 lbs
Warranty 1 Year
Resolution 400 DPI high resolution imaging
Connectivity USB 2.0 high speed compatible
System Integration ISO 14443 Type A and Type B ICs - Active and Passive authentication of ePassports. - Full SDK including DLLs, OCXs and demonstration programs. Support for Visual C++®,Visual Basic®, C++ Builder®
Regulatory FCC Part 15 Class A · UL, UL-C · CE, CB · WEEE/RoHS1
Operating Environment Humidity: 20 to 95% (R.H. non-condensing) - Temperature: -10º to 50º C operating; -20º to 50º C storage
Features OCR data capture· Complete access to OCR data and images captured via Software Development Kit (SDK)· Enables images to be accessed as BMP, PNG or JPEG format· Auto-triggering of document capture – presence of document is automatically detected
Documents Processing ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 - 1D barcodes (2 of 5 interleaved, Code 128, and Code 39) - 2D barcodes (PDF 417, QR, DataMatrix™ and Aztec formats) from paper documents and some mobile devices
