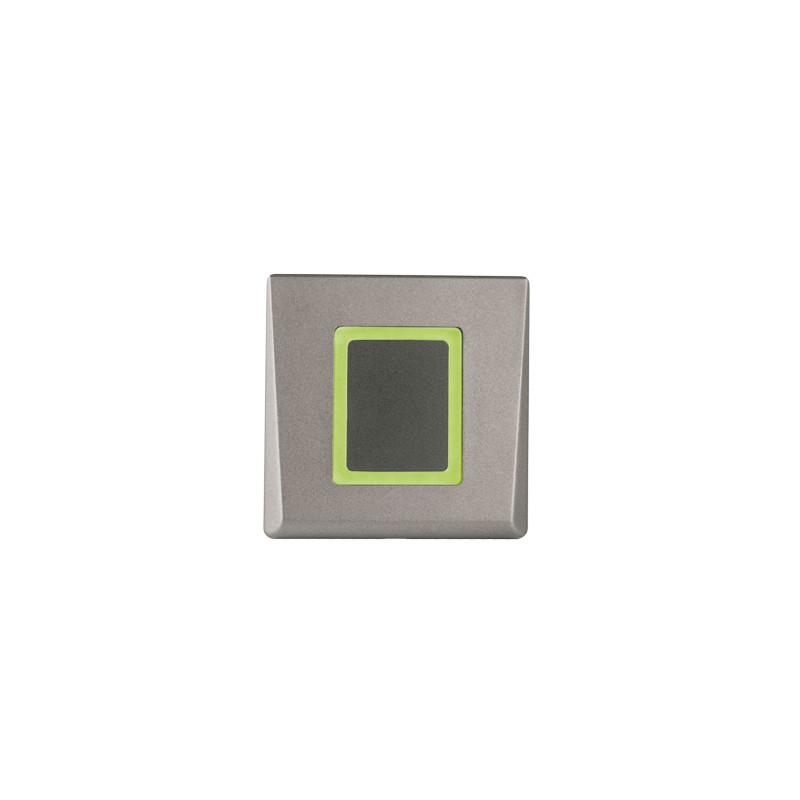

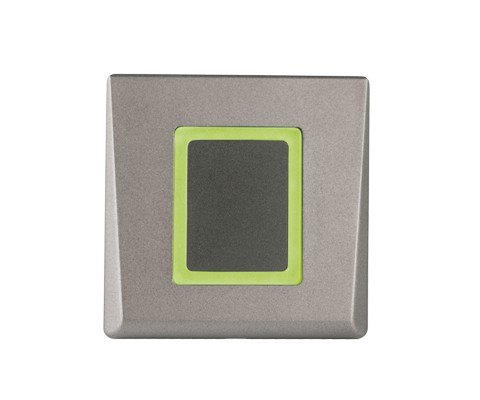

XPR DINMTPX-MF-SA Access

Model DINMTPX-MF-SA

XPR is proud to launch a unique user friendly offline proximity reader on the market. The Smart flush mount DINMTPX-MF-SA is completely standalone for pure access control.

Read Mifare 1K and 4K, the reader can be programmed with built-in micro-USB or desktop card enrolment

Data sheet

Dimensions	8 x 8 x 0.9 cm
Operating Environment	Operating : -20ºC to +50º C
Humidity	5% à 95%RH without condensation
Typical Read Range (inches) - ID-1 Credentials (Cards) – SIO Data Model	max 8 cm
Typical Read Range (inches) - Tags/Fobs – SIO data Model	max 8 cm
Environmental Rating	IP40
Cryto Processor Hardware Common Criteria Rating	EAL 5+
Communications	RS485, DINRTT, RTT
Communication interfaces	Micro-USB ou carte Mifare
